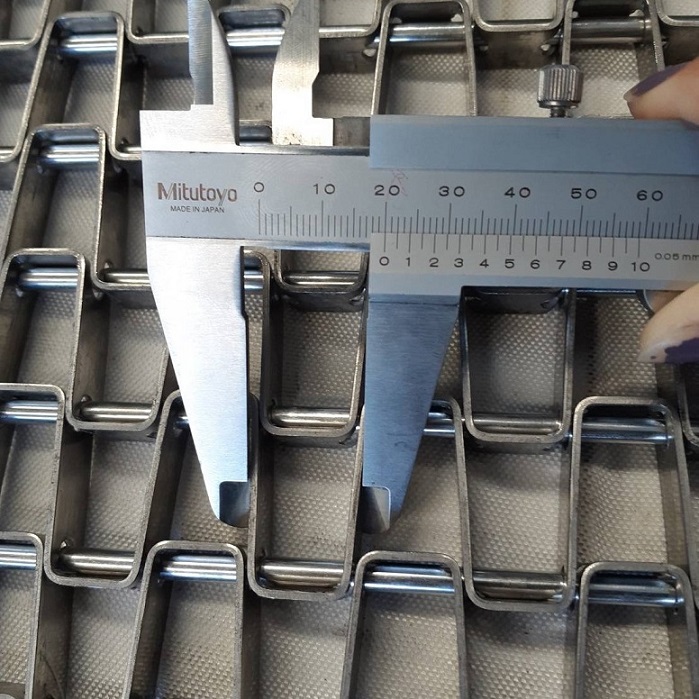

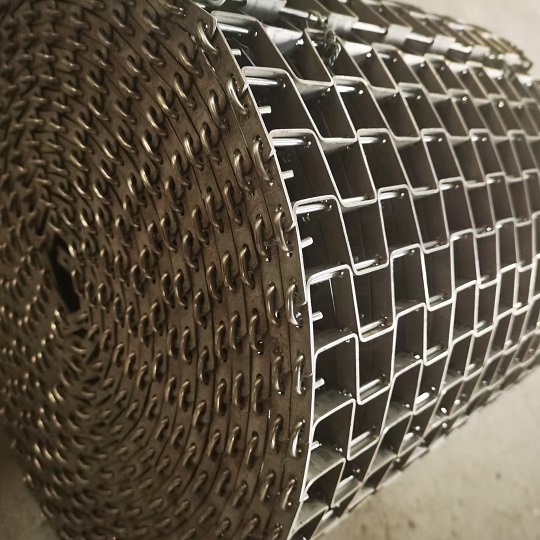

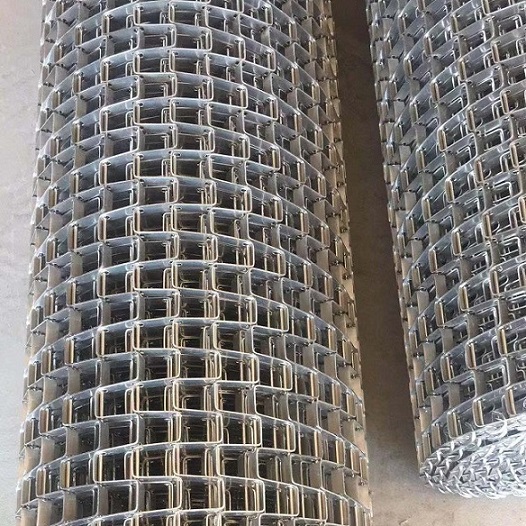

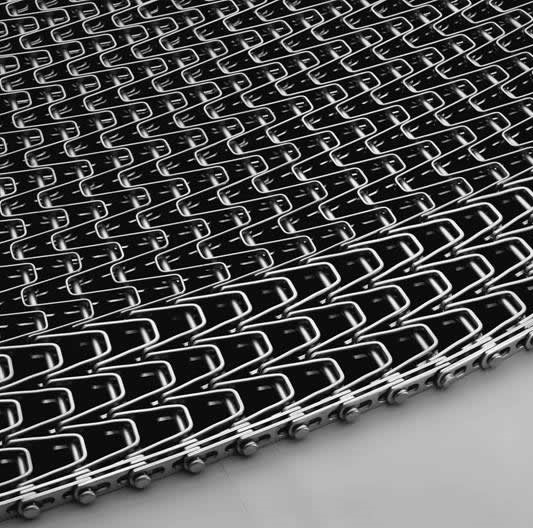

Honeycomb belting, also known throughout the industry as Flat Wire belting, is a straight-running belt with an extremely high strength-to-weight ratio. It is available in a wide variety of aperture configurations to suit applications as diverse as casting, baking, drainage and packaging.
Honeycomb is constructed from formed flat wire strips connected by cross rods running through the width of the mesh. The rods are finished with either welded button edges or hooked edges.
Honeycomb belt is available in a wide range of specifications. The examples listed in the following tables are the most common. Belts can be up to 5 metres wide, alternative specifications are available, please contact our Technical Sales Engineers for information
European Standard(available button edge (welded washer) only) | |||
Cross Rod Pitch (mm) | Nominal Lateral Pitch (mm) | Flat Strip (mm) | Cross Rod (mm) |
13.7 | 14.6 | 10x1 | 3 |
26.2 | 15.55 | 12x1.2 | 4 |
27.4 | 15.7 | 9.5x1.25 | 3 |
27.4 | 24.7 | 9.5x1.25 | 3 |
28.6 | 15 | 9.5x1.25 | 3 |
28.4 | 22.5 | 15x1.2 | 4 |
28.6 | 26.25 | 9.5x1.25 | 3 |
Imperial Standard (available button edge (welded washer) only | |||
Cross Rod Pitch (mm) | Nominal Lateral Pitch (mm) | Flat Strip (mm) | Cross Rod (mm) |
12.85 | 14.48 | 9.5x1.2 | 3 |
13.72 | 14.48 | 9.5x1.2 | 3 |
14.22 | 15.46 | 9.5x1.2 | 3 |
28.58 | 15.46 | 9.5x1.2 | 3 |
27.53 | 15.22 | 9.5x1.2 | 3 |
26.97 | 15.22 | 9.5x1.2 | 3 |
28.58 | 26.19 | 9.5x1.2 | 3 |
26.97 | 17.78 | 12.7x1.6 | 4.9 |
26.97 | 25.4 | 12.7x1.6 | 4.9 |
28.58 | 25.4 | 15.9x1.6 | 4.9 |
38.1 | 38.1 | 15.9x1.6 | 4.9 |
50.8 | 50.8 | 15.9x1.6 | 4.9 |
76.2 | 76.2 | 15.9x1.6 | 4.9 |
Apart from the standard sizes above we are able to provide custom built specifications and the table below gives the framework of availability. Please contact our Technical Sales team to discuss availability in detail as further restrictions do apply to flat strip section size required.
Cross Rod Pitch | edge type | |||
Cross Rod Dia. (mm) | from (mm) | to (mm) | Welded | Clinched |
3.00 | 12.7 | 30.0 | • | |
4.00 | 13.7 | 29.0 | • | • |
5.00 | 25.0 | 28.0 | • | • |
Sprockets are available in the following sizes:
Table of sprocket pitch circle diameters for European standard drive sprockets
Belt Standard/Cross Rod Pitch | |||||
teeth | ES001 13.7mm | ES003 26.2mm | ES004/6 27.4mm | ES012/13 28.6mm | ES015 28.4mm |
12 | 52.93 |
101.23 | 105.87 | 110.50 | 109.73 |
18 | 78.90 | 150.88 | 157.79 | 164.70 | 163.55 |
24 | 104.96 | 200.73 | 209.92 | 219.11 | 217.58 |
30 | 131.06 | 250.65 | 262.13 | 273.61 | 271.70 |
